Detecting TVOC | Handheld Odor Meter OMX-TDM

Product Information / OMX-TDM

For detecting TVOC which causes sick house syndrome.

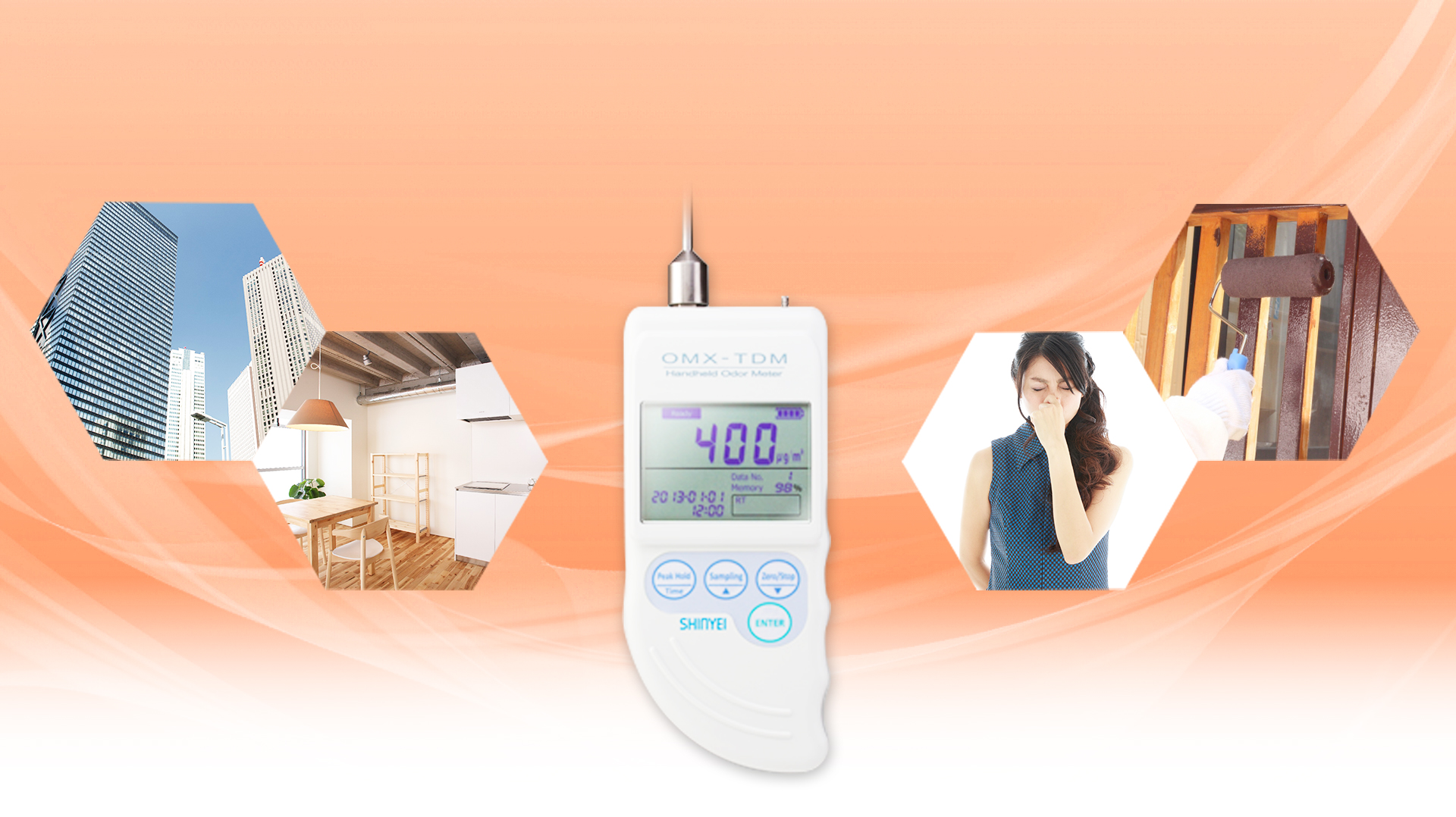

Handheld Odor Meter OMX-TDM

Handheld Odor Meter

Handheld Odor Meter is highly sensitive.

Simple and
easy to
measure odor
Just turn
the switch on
Data can be
stored up
to 511 files
Data logging function with
large capacity

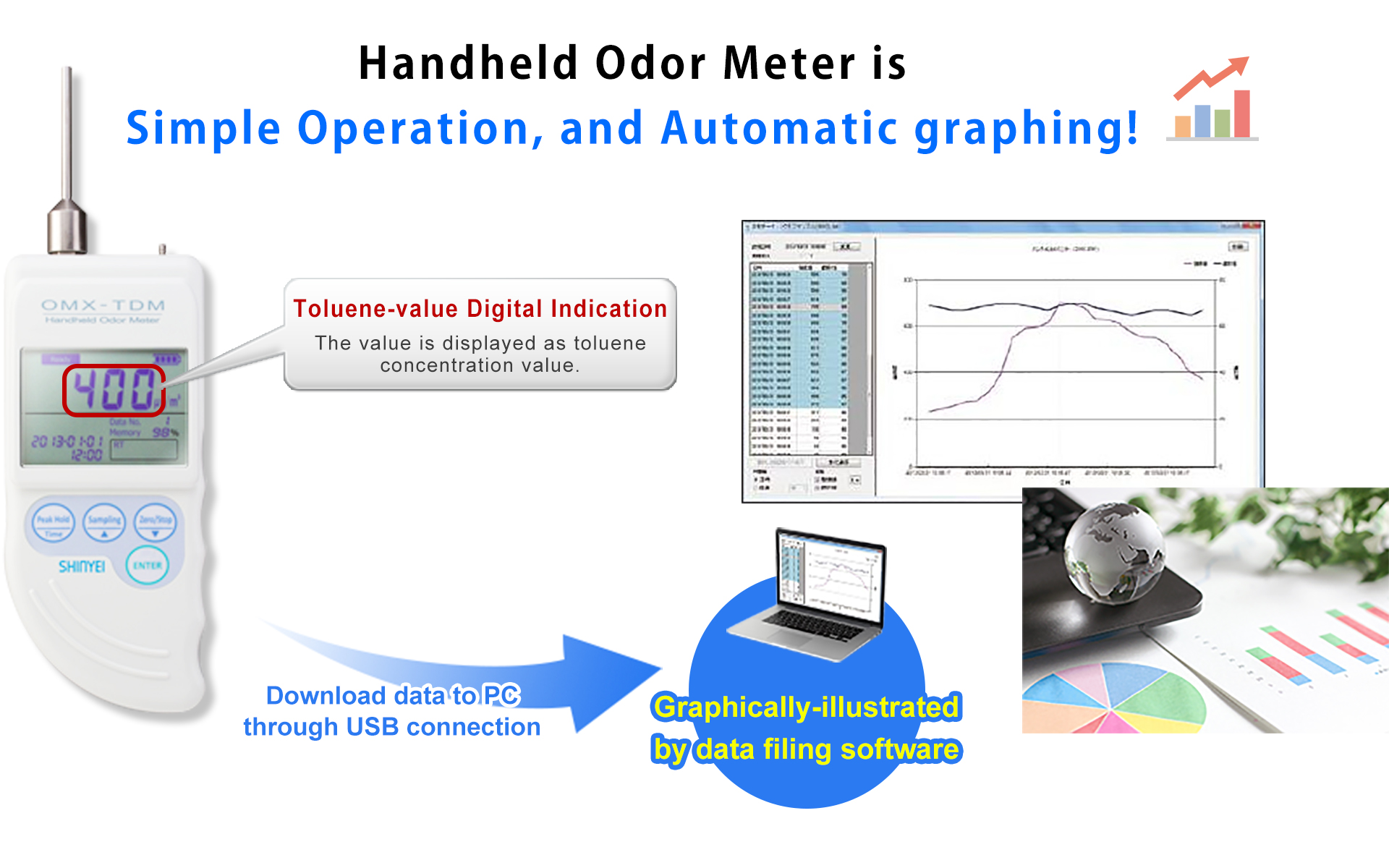

Data can be graphically
illustrated by
Data filing software

Handheld Odor Meter OMX-TDM is suitable for detecting TVOC which causes sick house syndrome.

イメージ

Display toluene equivalent value in μg/m3.
No need any complicated preparation for odor measurement.
Simple and easy to use.
Detect TVOC in living environment, petrochemical plants and manufacturing factories.
For odor control, workspace improvement and odor measures for quality control.

Handheld Odor Meter

Toluene-value Digital Indication: The value is displayed as toluene concentration value.
Simple setting up in advance: The sampling is user-friendly and collecting data in real time.
Start in short time: Measurement starts quickly in 10min.

How to start and how to measure

Specification

Model Name	OMX-TDM
Detection Method	One Semiconductor Gas Sensor
Sampling Method	Continuous Sampling with Built-in Air Pump
Object Gas	TVOC (Toluene), etc
Odor Strength Level	0 - 9999 (ug/m3)
Classification	-
Power	4×AASize Alkaline Batteries or AC Adaptor *Battery life for continuous measurement is approx. 7 hours.
Memory Capacity	Up to 32,732 Data
Memory Partition	Up to 511 Files
Operating Temperature	0 ～ 40℃(32-104F) *No Dew Condensation
Storage Temperature	-10 ～ 50℃(14-122F) *No Dew Condensation
Dimensions	W74 X L167.5 X D35mm approx.
Weight	250g approx. (Without Batteries)
Accessories	USB Cable, Air Purifying Unit, Activated Carbon, 4×AA Size Alkaline Batteries, AC Adaptor
